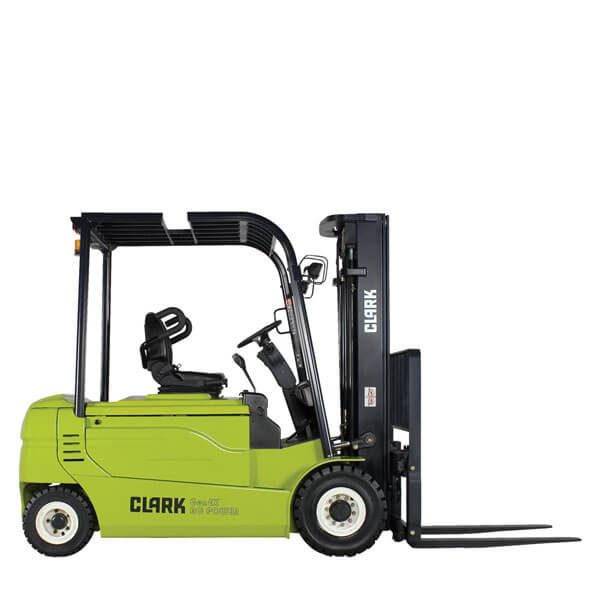

Electric four-wheel forklift GEX20-30sL

Datasheet brochure

Electric four-wheel forklift
Capacity: 2000 – 3000 kg @ 500/600 mm load center

GEX20/25/30s/30/30L

GEX 20 2000 kg – GEX 25 2500 kg
GEX 30(s) 3000 kg – GEX 30L 3000 kg @ 600 mm load center distance

Category:
Enquire Now

CLARK builds one of the best electric forklifts on the market with an ergonomic driving position for the operator, an easy operation concept and maximum visibility of forks and loads. Twin 7.8kW traction motors with parallel front drive and 80 V three-phase AC technology lead to excellent acceleration and high final travel speed. Customized options ensure adaption for each application both indoors and outdoors.

  • Controlled driving due to easy vehicle operation
  • Automotive pedal layout
  • Easy entry due to low foot step
  • Entry and exit from both sides
  • Ergonomic positioning of the control levers on the hood
  • Optional: mini-lever control
clark_GEX20-30sL_image_2
  • The vehicle length and aisle space needed basically equal those of a 2.5 t forklift
  • Due to its compact chassis, applications in particularly narrow spaces can be completed using the CLARK GEX30s

The twin 7.8 kW traction motors with parallel front drive and 80 V three-phase AC technology lead to great acceleration and high final travel speed.

  • Enclosed motors
  • Few replacement parts
  • Overheat protection
clark_GEX20-30sL_image_3
clark_GEX20-30sL_image_4

Stable steering axle with 101° steering angle

  • Due to a 101° steering angle, the GEX20¬30L turns around almost on the spot just like a 3-wheel forklift

Speed regulation in curves

  • Automatic deceleration when cornering

Steering system

  • Depending on the steering angle, the speed and rotation of the front wheels are controlled ensuring low tyre wear

Robust upright and fork carriage structure

  • Maximum visibility
  • Nested rail profiles
  • Hydraulically damped lift cylinders
  • Low-noise lifting hydraulics
  • Reduced vibrations
  • Adjustable canted load rollers
  • Optimum load distribution
  • Robust 6 ¬roller fork carriage
clark_GEX40-50_image_5
  • Customized programming of truck operation
  • Maximum adjustment to suit each work situation
  • Large clear display
  • All settings and functions at a glance-adjustable without special software

POWERFUL, UNIVERSAL, EASY HANDLING – CLARK’S 80-VOLT HIGH-PERFORMANCE FORKLIFT
