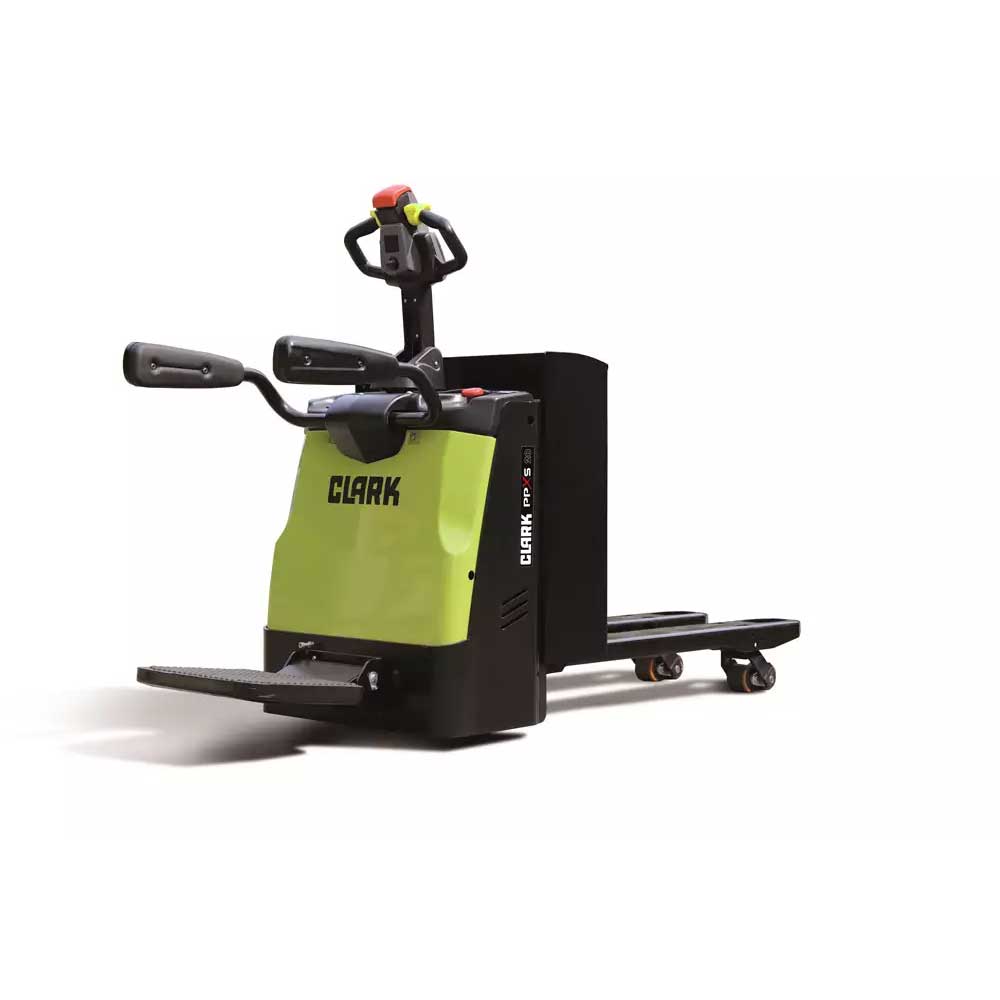

Clark Electric low lift pallet truck PPXS20

The PPXS20 – A Compact Powerhouse for longer Transport Distances

The PPXS20 is designed for use on medium to long transport routes. Due to the foldable operator platform the truck can be used in confined spaces without any problems. The electric steering and the suspension of the stable stand-on platform offers the driver additional comfort. An automatic speed reduction during cornering ensures a high level of sa fety in curves.

LOAD CAPACITY
max. 2000 kg

LIFT HEIGHT
max. 210 mm

TRAVEL SPEED
max. 8/12 km/h

ENGINE OUTPUT
1.5/2.5 kW

BATTERY
max. 500 Ah/5hr

STACKING WIDTH
min. 1984 mm

User-friendly

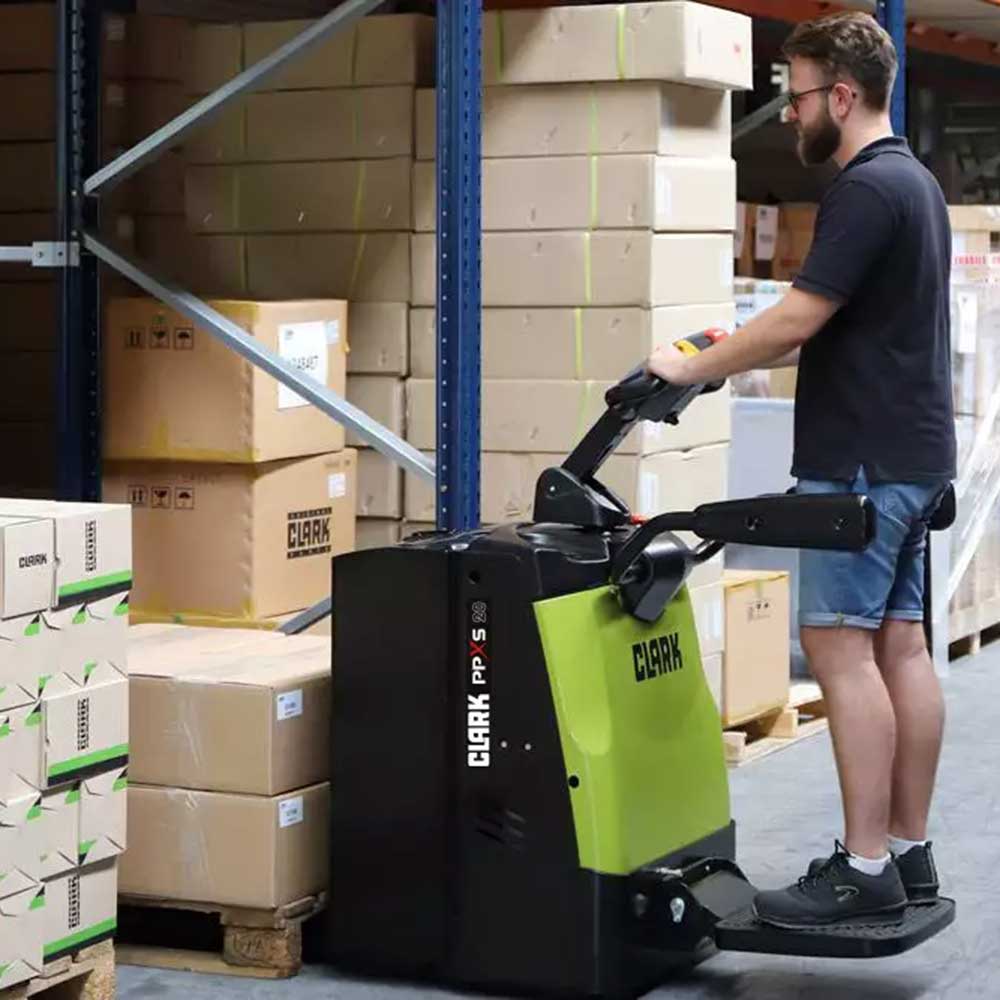

The operator platform with side guards is standard equipment on the PPXS20. Like the side guards, the platform can be folded away manually (pedestrian operation). Together with the standard power steering, this ensures that the vehicles can also be used in space-critical work areas without any problems.

Safe to operate
The platform tread has a non-slip surface and offers optimum comfort and safety thanks to the additional suspension. The low step height also makes it easier for the operator to climb up and down. When the operator leaves the platform, the vehicle automatically switches to stand-by mode. The truck can then no longer be moved.

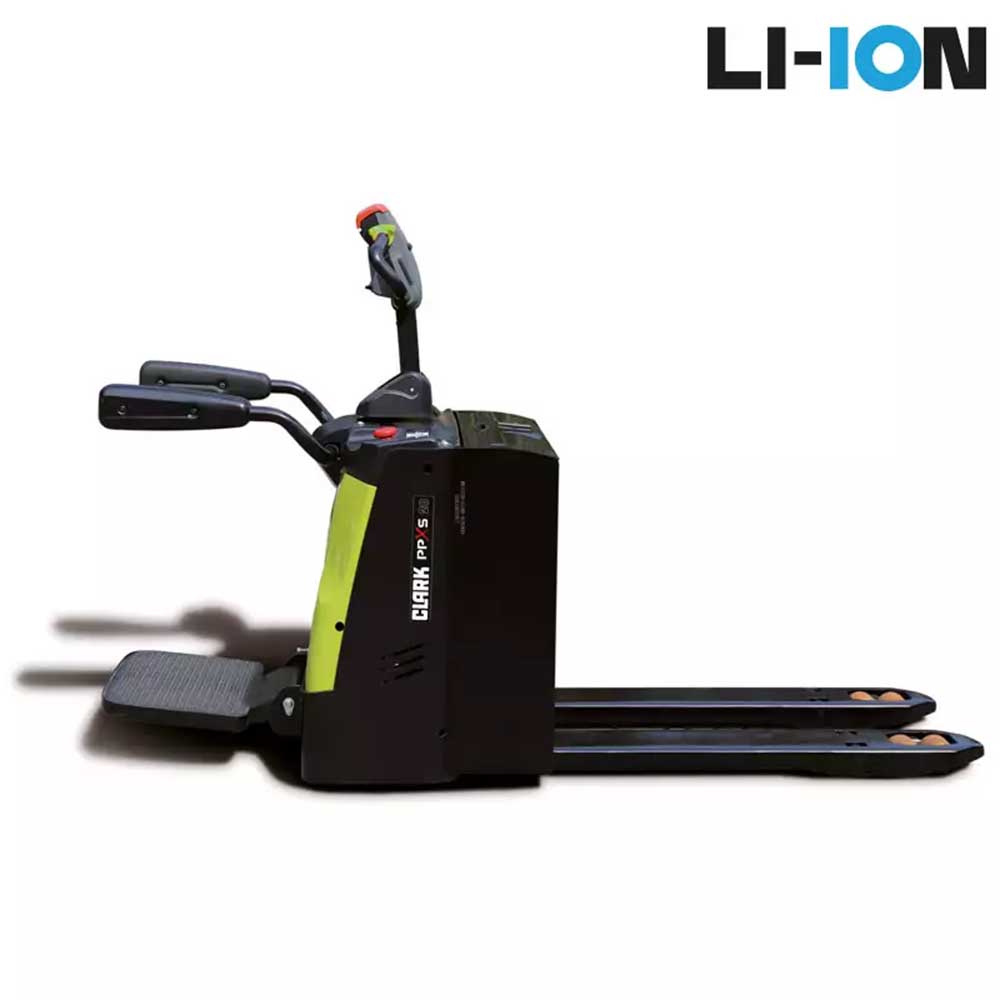

Lithium-Ion Battery
For intensive applications, such as multi-shift operation, where the focus is on high availability, the PPXS20 is also available with a lithium-ion battery (205 Ah). The Li-Ion battery can be easily recharged without limiting the service life. The battery can be recharged at any 230-volt socket. In only 10 minutes, 7 % of the battery capacity can be recharged.

Additionally, Li-Ion technology not only enhances productivity but also results in significant cost savings in terms of maintenance, infrastructure, and battery replacement. This makes Li-Ion batteries a cost-effective choice for operators seeking high performance, durability, rapid charging capabilities, and robust safety standards.

Low operating costs due to simple maintenance
The use of proven AC controllers makes the PPXS20 pallet truck an extremely maintenance-friendly warehouse helper. Should a malfunction nevertheless occur, the error code indication in the display provides the service technician with information about the possible cause. The truck offers easy access for service and maintenance work. In addition, the service technician can easily programme all driving parameters via the display.
