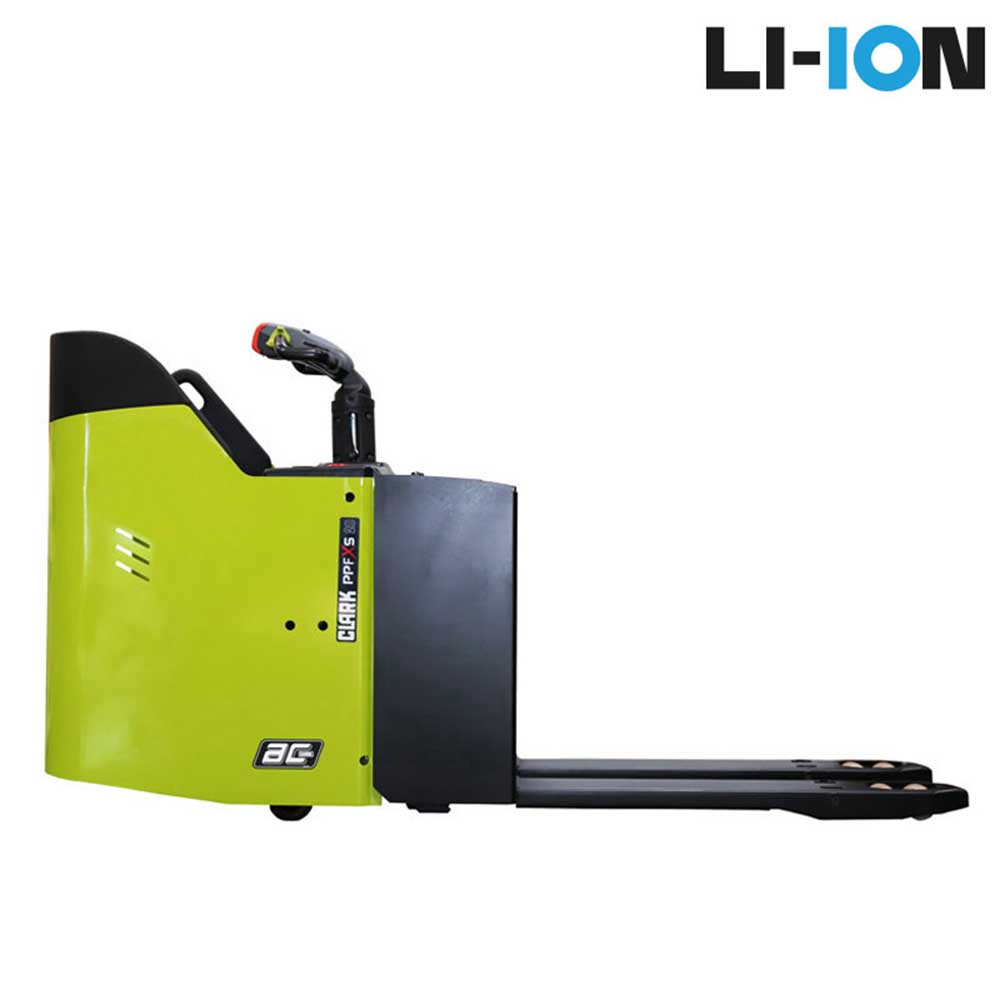

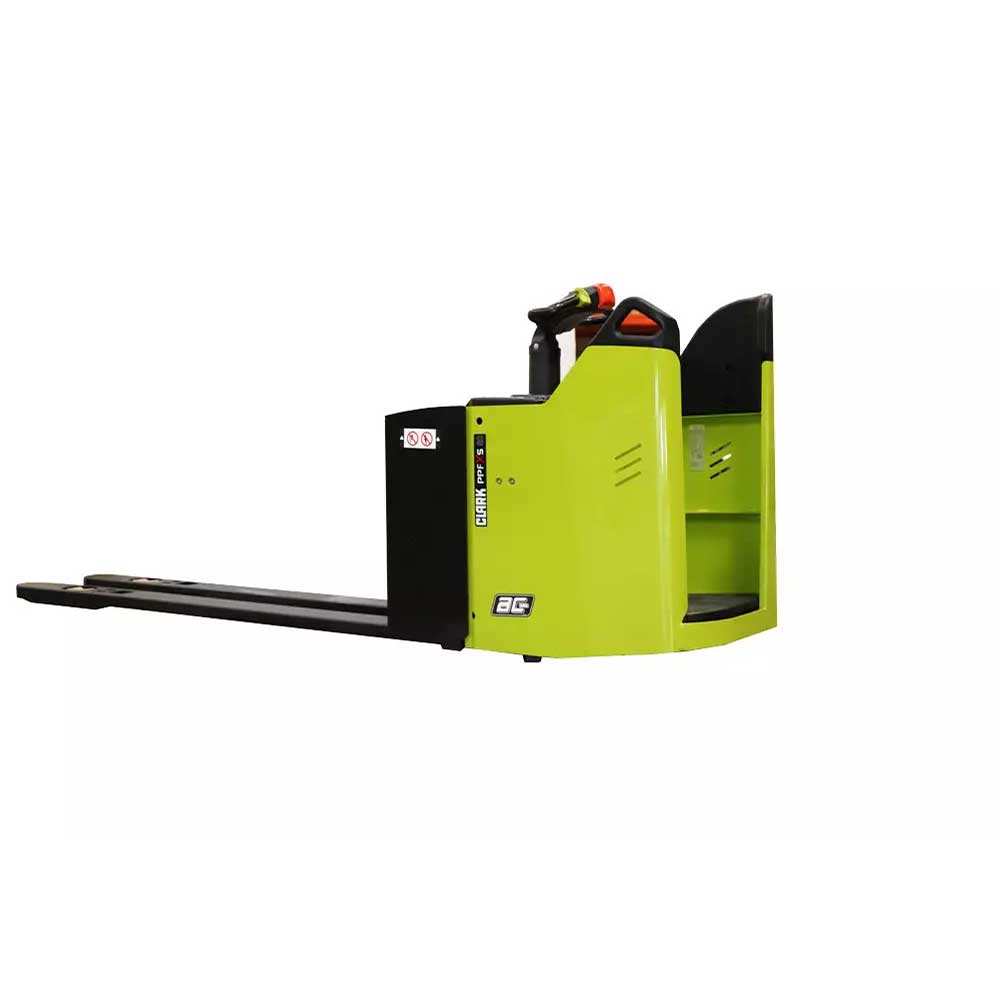

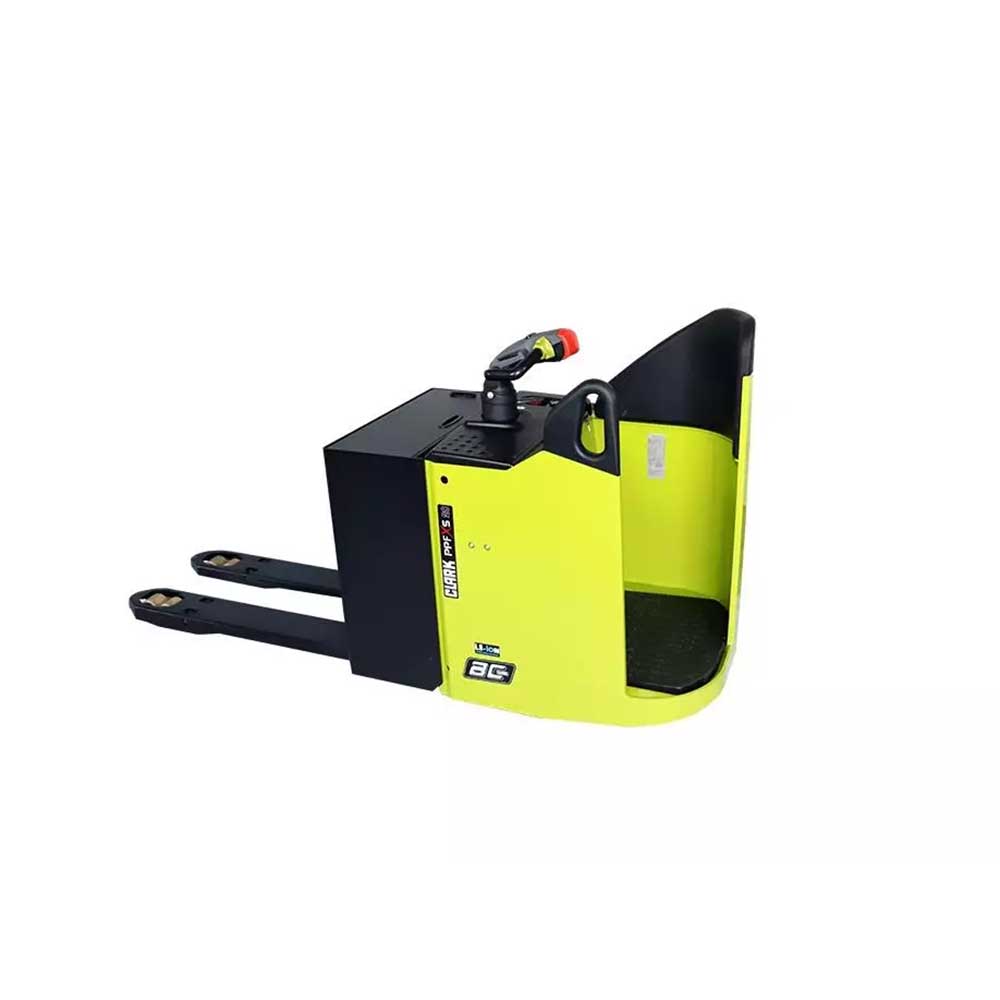

Clark Electric low lift Pallet truck PPFXS20

Pure productivity. High driving speed. Long mileage

The CLARK PPFXS20 low lift pallet truck with a load capacity of 2 t features an integrated operator platform with padded side walls. It has a fully electric power steering system, which allows the truck to be operated intuitively and safely. The automatic reduction of the driving speed in curves also ensures a high level of safety. The CLARK low-lift pallet truck is the ideal vehicle for loading and unloading trucks, transporting loads by road and picking a wide variety of goods.

LOAD CAPACITY
max. 2000 kg

LIFT HEIGHT
max. 120 mm

TRAVEL SPEED
max. 8.5/10 km/h

ENGINE OUTPUT
max. 205 Ah Li-Ion

BATTERY
max. 375 Ah Lead-acid

STACKING WIDTH
min. 3017 mm

High driving speed – High productivity at a speed of max. 10 km/h
Powerful 24 volt AC drive motors – Powerful acceleration and high speeds even with a full load
Strong battery – Long running time thanks to a battery capacity of 375 Ah (lead-acid battery) or 205 Ah (LI-ion battery)

Lithium-ion battery
For intensive applications, such as multi-shift operation, where the focus is on high availability, the PPFXS20 is also available with a lithium-ion battery (205 Ah). The Li-Ion battery can be easily recharged without limiting the service life. The battery can be recharged at any 230-volt socket. 7 % of the battery capacity can be recharged in only 10 minutes.

Additionally, Li-Ion technology not only enhances productivity but also results in significant cost savings in terms of maintenance, infrastructure, and battery replacement. This makes Li-Ion batteries a cost-effective choice for operators seeking high performance, durability, rapid charging capabilities, and robust safety standards.

Low operating costs due to simple maintenance
The use of proven AC controllers makes the PPFXS20 pallet truck an extremely maintenance-friendly warehouse helper. Should a malfunction nevertheless occur, the error code indication in the display provides the service technician with information about the possible cause. The truck offers easy access for service and maintenance work. In addition, the service technician can easily programme all driving parameters via the display.
