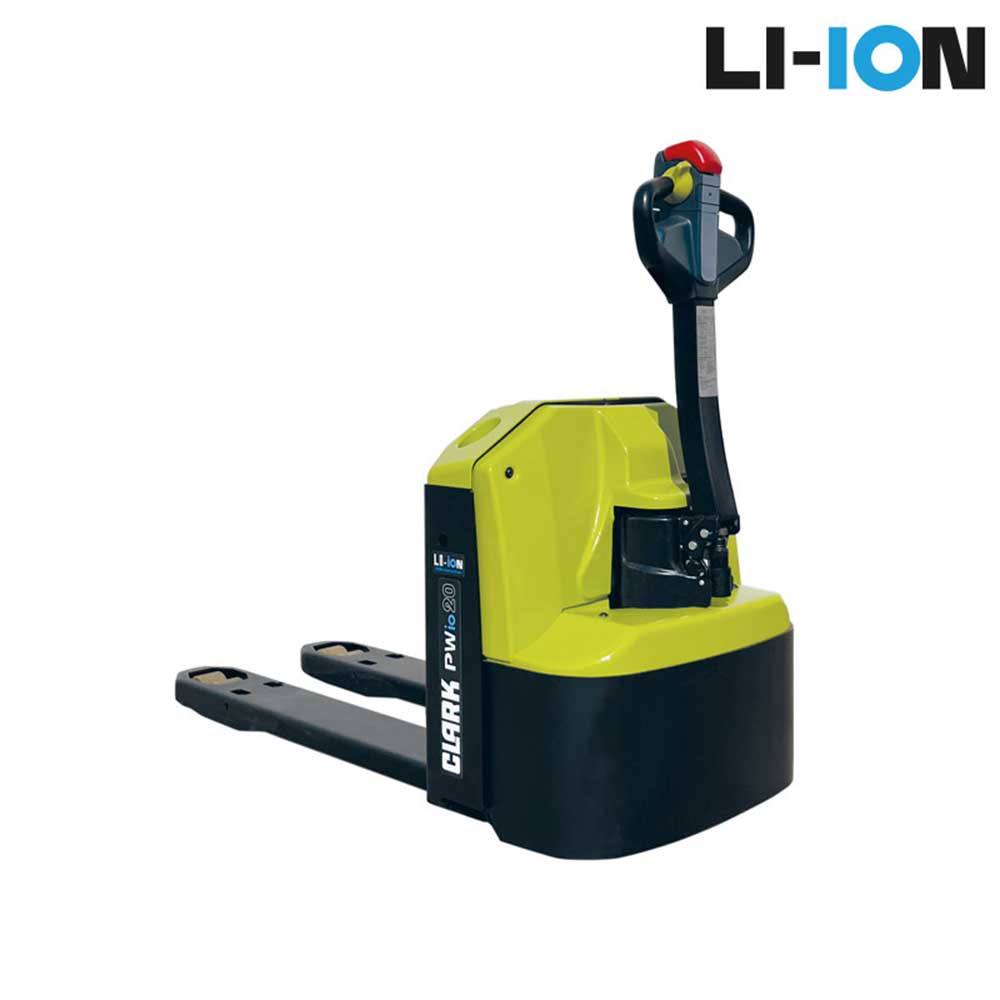

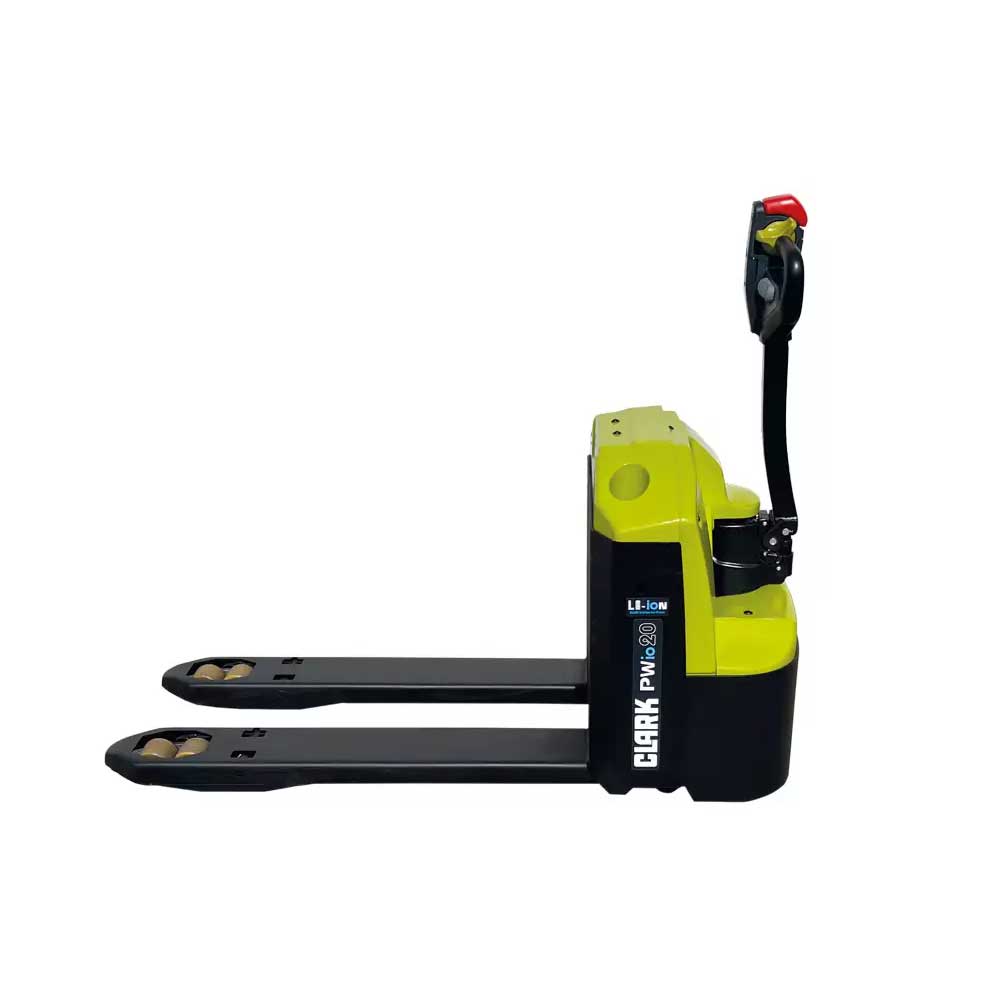

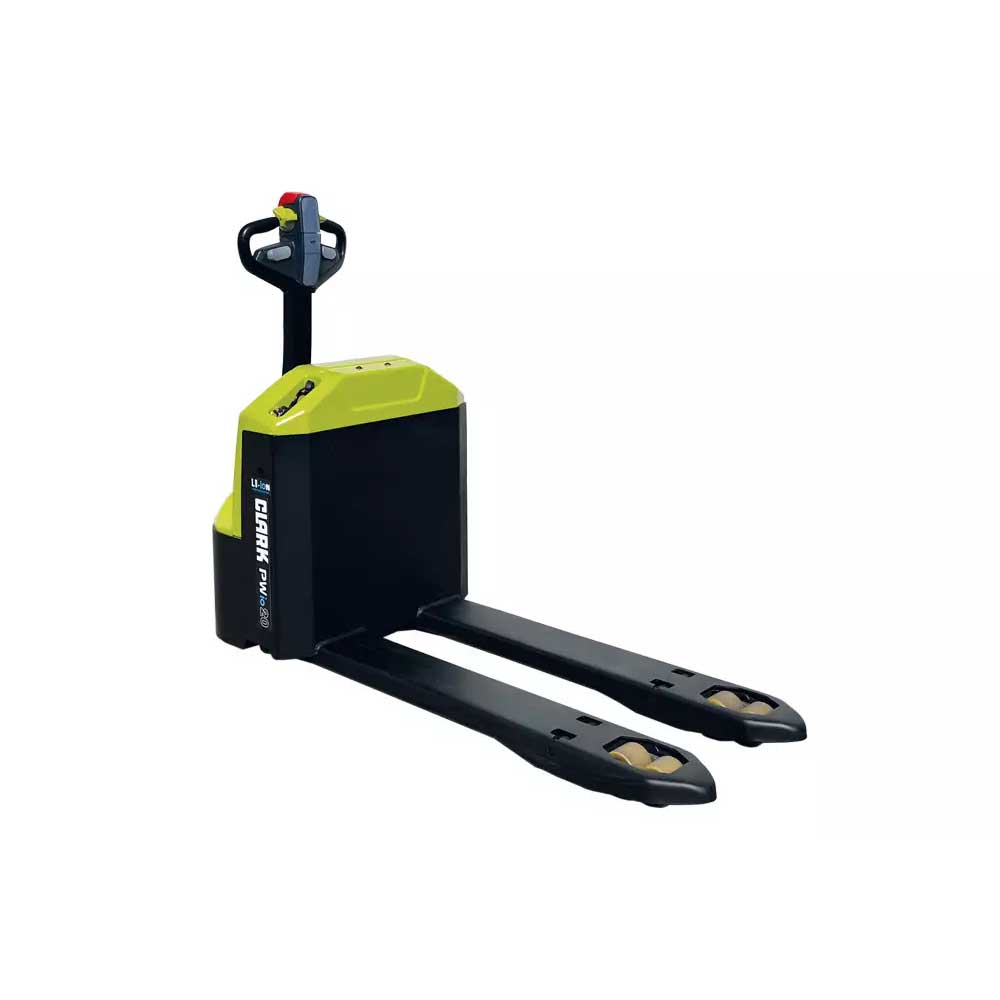

Clark Electric low lift Pallet truck PWio20

Compact power pack for demanding applications – with Li-Ion power for highest efficiency

The PWio20 low lift pallet truck with a load capacity of 2.0 t is ideal for transporting and storing goods over short distances in industry, trade and distribution. This low-lift truck is designed for demanding applications in pedestrian operation, is extremely manoeuvrable and shows its capabilities especially when transporting heavy loads in goods distribution, production or storage.

LOAD CAPACITY
max. 2000 kg

LIFT HEIGHT
max. 207 mm

TRAVEL SPEED
max. 5/5.5 km/h

ENGINE OUTPUT
1.6 kW

BATTERY
max. 100 Ah Li-Ion

STACKING WIDTH
min. 2080 mm

• Using powerful and maintenance-free AC drive technology with a 1.6 kW drive motor
• Durable and powerful Li-Ion battery with integrated charger
• The 24V, 100Ah Li-Ion battery can be charged at any time and within a very short timeframe
• Furthermore, the optimized and adjustable side support rollers provide exceptional stability and climbing capability when transporting materials on uneven surfaces and ramps

Ergonomic Controls
For easy and user-friendly control of the low lift truck, we’ve placed all the controls on the ergonomically designed handle in a way that works well for both right-handed and left-handed operators. The handle’s generous size allows operators to maintain a safe distance, ensuring maximum safety during operation.

Compact and Easy to Handle: The PWio20 Ensures Maximum manoeuvrability
The PWio20 features an impressively tight turning radius of just 1320 mm. With a chassis length of only 470 mm (L2 dimension), an overall width of 714 mm, and a featherweight tare weight of 280 kg, it’s exceptionally lightweight and compact. This makes it an ideal choice for manoeuvring in confined workspaces like storage areas, sales rooms, or for easy transport on trucks.

Lithium-Ion Battery
The PWio20 has a standard lithium-ion battery with a 100 Ah capacity. This battery is easy to recharge without harming its lifespan using the built-in 30 A charger. You can charge it at any 230 V socket, and it only takes 10 minutes to recharge 7% of its capacity. By using Li-Ion technology, the device boasts improved operational readiness, as there’s no need for time-consuming battery replacements.

Additionally, Li-Ion technology not only enhances productivity but also results in significant cost savings in terms of maintenance, infrastructure, and battery replacement. This makes Li-Ion batteries a cost-effective choice for operators seeking high performance, durability, rapid charging capabilities, and robust safety standards.
