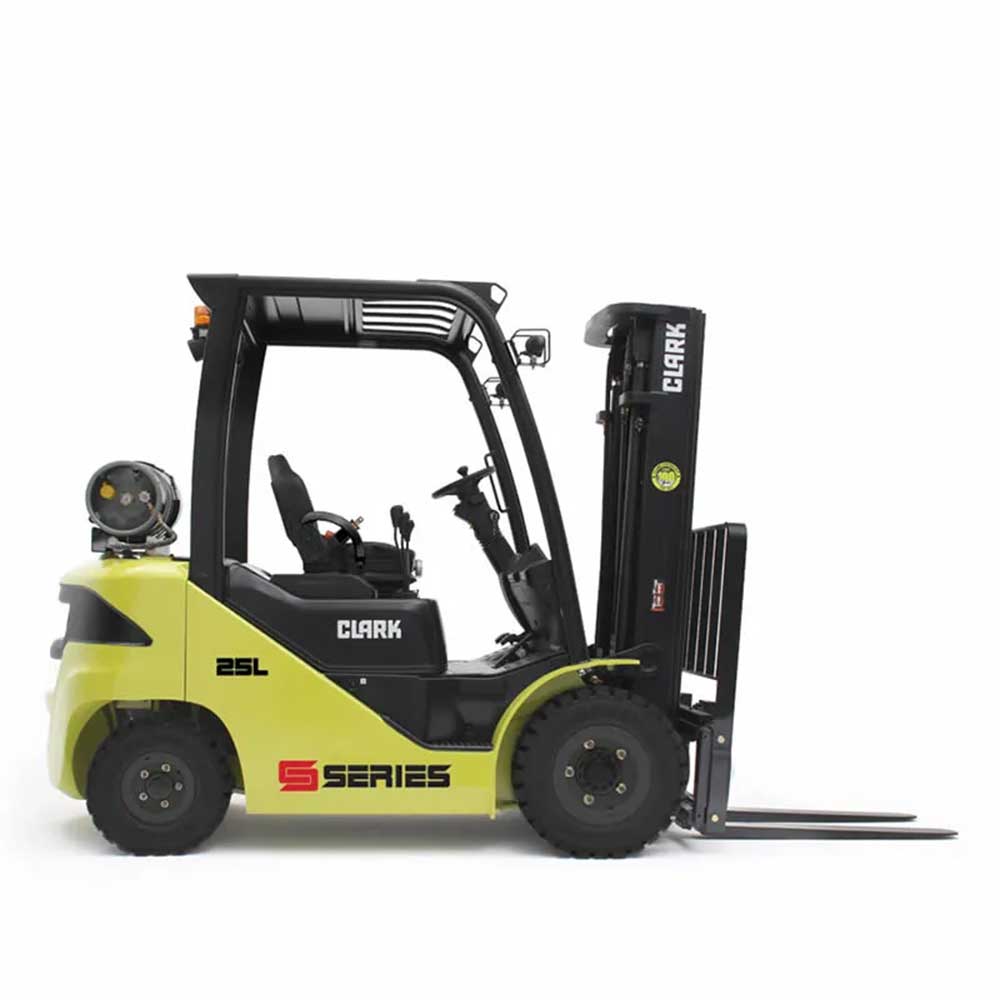

Clark Forklift with Diesel or LPG drive S20-35

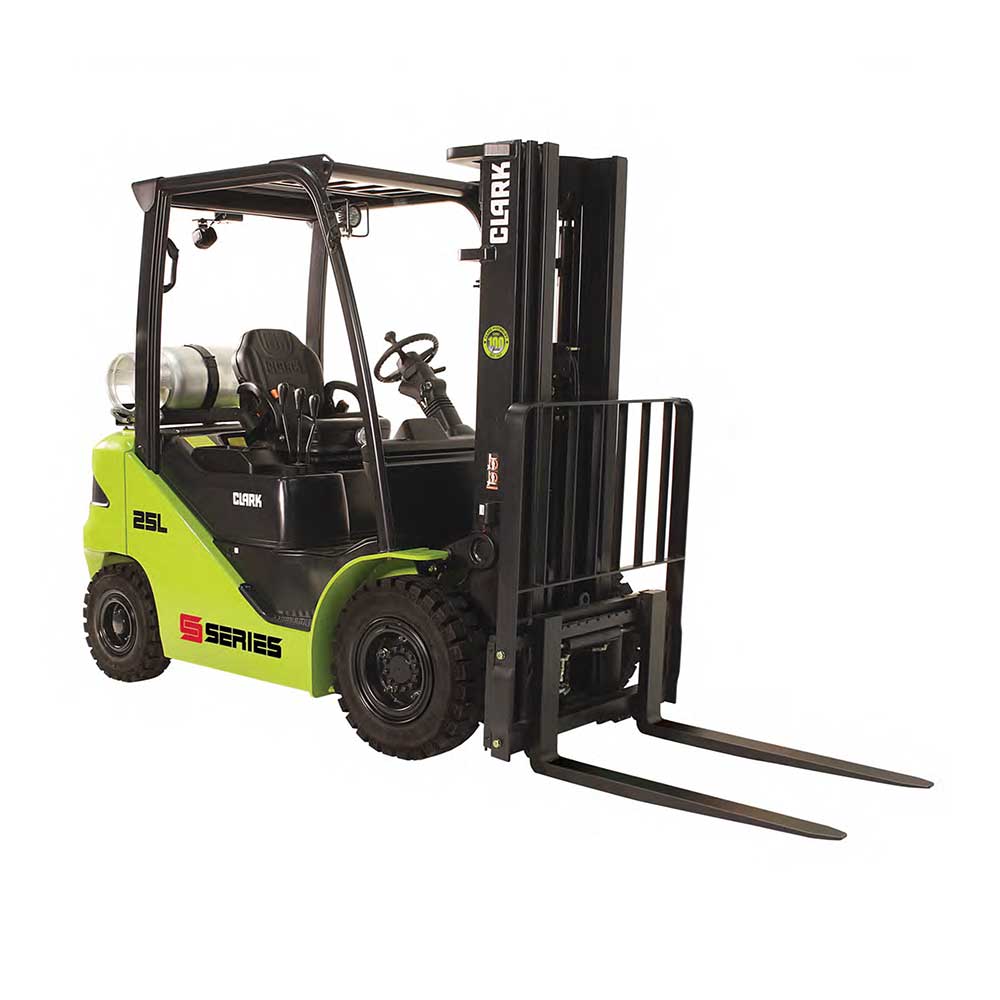

Clark Forklift with Diesel or LPG drive S20-35 - Image 2

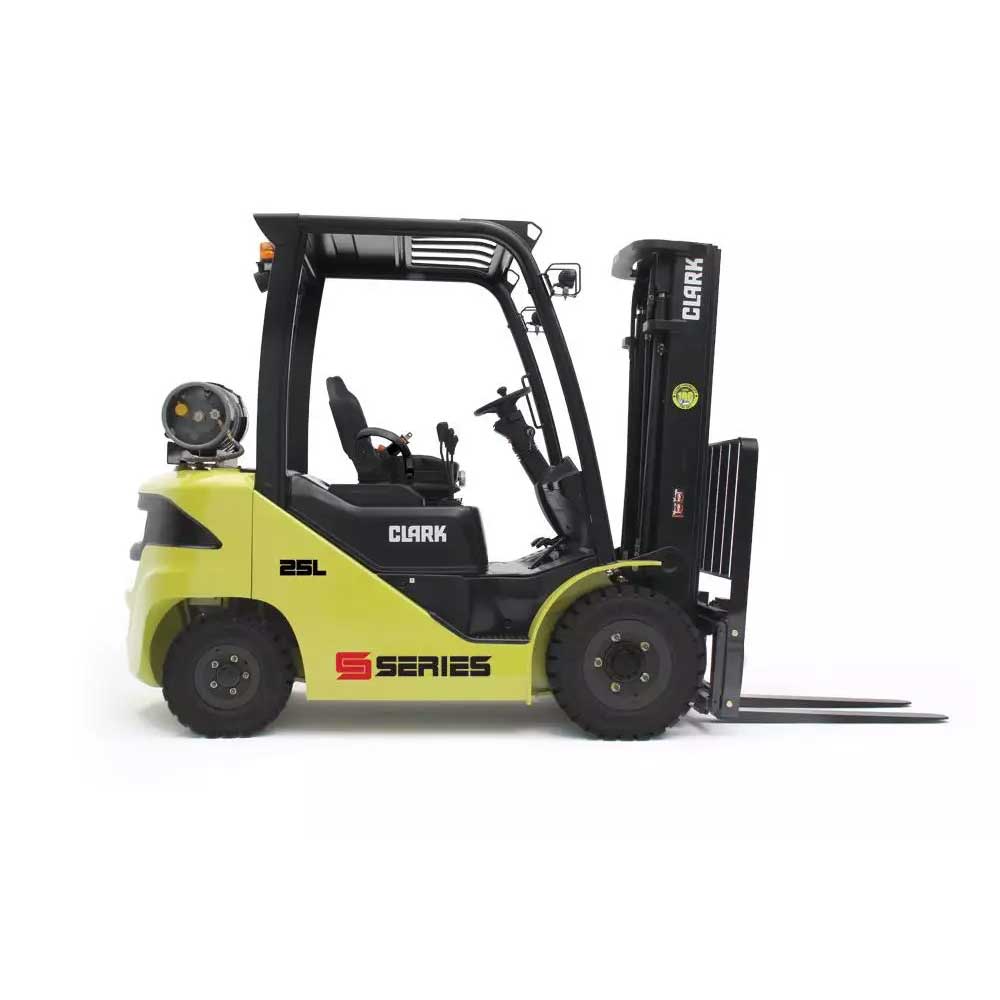

Clark Forklift with Diesel or LPG drive S20-35 - Image 3

Atlantic Forklifts Clark Forklift with Diesel or LPG drive S20-35 1

Atlantic Forklifts Clark Forklift with Diesel or LPG drive S20-35 2

Clark Forklift with Diesel or LPG drive S20-35

Datasheet brochure

Superelastic or pneumatic tyres
Capacity: 2000 – 3500 kg @ 500 mm LC

S20/25/30/35

S20 2000 kg
S25 2500 kg
S30 3000 kg
S35 3500 kg

Category: Diesel/LPG Forklifts

Description

High availability with low operating and maintenance costs

Stylish design – solid construction and even more safety and comfort for the driver. With the S-Series, we have created a vehicle that focusses more than ever on the needs of the operator. The next generation of IC engine-powered forklift trucks is here – the new S-Series.

LOAD CAPACITY
max. 3500 kg

LIFT HEIGHT
max. 7935 mm

TRAVEL SPEED
max. 21.2 km/h

ENGINE OUTPUT
LPG 52.4 kW
DSL 46.0 kW

STACKING WIDTH
min. 3930 mm

Driver compartment and productivity

Minimal vibration and noise generation thanks to split transmission
Comfortable full suspension seat
Responsive hydraulic levers hood mounted within easy reach
Non-slip floor plate
Spacious interior with ample leg room
Narrow steering column
Steering wheel with optimal diameter (ø=300 mm)
Brake servo
Optimised step height for easy entry and exit

High Performance Engines
FORD (2.5L) LPG engine

Fuel-efficient industrial engine
4-cylinder design
Meets all Stage 5 emission standards
Electronic speed measurement
ECU-controlled map ignition for more torque and low fuel consumption

ISUZU (2.2L) diesel engine

Turbocharger with intercooler
Meets all Stage 5 emission standards
Direct fuel injection with high peak torque
DPF (diesel particulate filter)
DOC (diesel oxidation catalyst)

YANMAR (3.3L) diesel engine

For non-EU diesel engine emission regulation countries (Stage IIIa).
